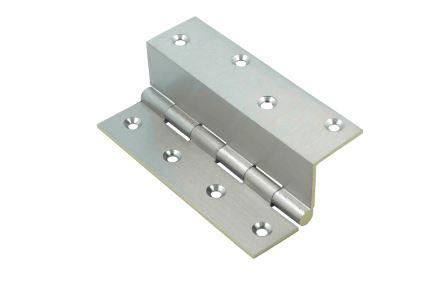

Z Hinges
- Made from extruded brass to provide high density
- Mainly used where door thickness and frame thickness are same
- Used on end doors of cabinet as this are not visible from outside
- Used to cover frame of cabinet by 12mm, 19mm and 25mm
- Available height of hinges – 75mm and 100mm
- Available width as specified (W) – 9mm to 25mm
- Thickness – 2.25 mm (highest in category)
| INCHES |
M.M. |
| Height x Depth |
Height x Depth |
| 3×1/2 |
75×12 |
| 4×1/2 |
100×12 |
| 3×5/8 |
75×16 |
| 4×5/8 |
100×16 |
| 3×3/4 |
75×19 |
| 4×3/4 |
100×19 |
| 3×1 |
75×25 |
| 4×1 |
100×25 |
