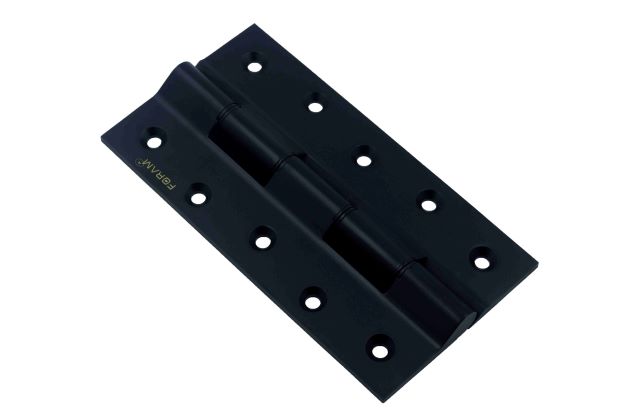

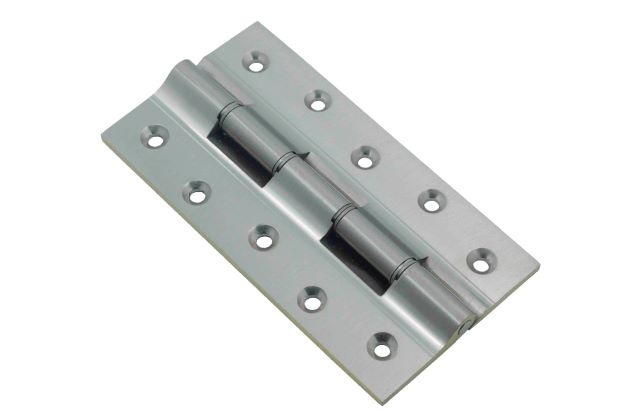

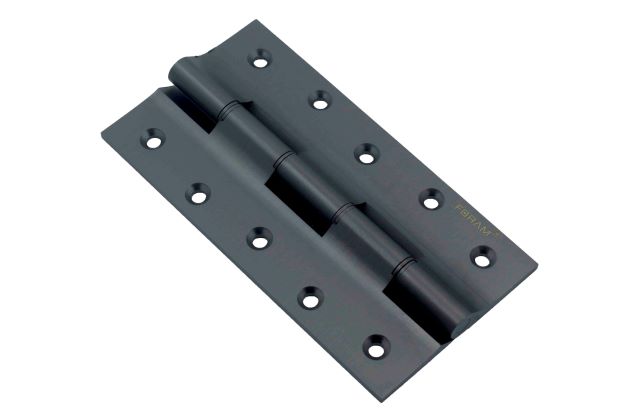

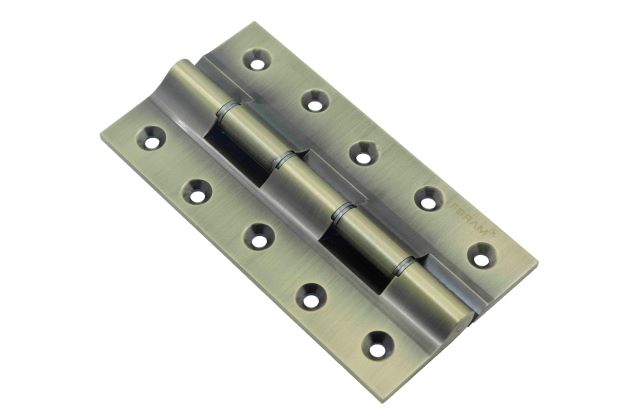

Washer Hinges
- Strongest Hinges in Main Door hinges Family
- Stainless steel lock washer placed between two knuckles to prevent brass from getting bruised
- Made from extruded Brass to provide high density
- Used for Main Doors having thickness between 25mm to 75mm
- Available Height of Hinges – 75mm to 300mm
- Available Width as specified (A) – 22mm to 63mm
- Thickness to be taken as to Door Weight, Option available 3mm to 5mm
- Available in Velvet and Elite Series
Sizes
| Inches | MM |
|---|---|
| Height X Width X Thickness | Height X Width X Thickness |
| 4x1x5/32 | 100x25x4 |
| 5x1x5/32 | 125x25x4 |
| 6x1x5/32 | 150x25x4 |
| Inches | MM |
|---|---|
| Height X Width X Thickness | Height X Width X Thickness |
| 4×1 1/8×5/32 | 100x28x4 |
| 5×1 1/8×5/32 | 125x28x4 |
| 6×1 1/8×5/32 | 150x28x4 |
| 4×1 1/4×5/32 | 100x31x4 |
| 5×1 1/4×5/32 | 125x31x4 |
| 6×1 1/4×5/32 | 150x31x4 |
| Inches | MM |
|---|---|
| Height X Width X Thickness | Height X Width X Thickness |
| 4×1 1/2×5/32 | 100x38x4 |
| 5×1 1/2×5/32 | 125x38x4 |
| 6×1 1/2×5/32 | 150x38x4 |
| Inches | MM |
|---|---|
| Height X Width X Thickness | Height X Width X Thickness |
| 4×1 1/4×3/16 | 100x31x4.5 |
| 5×1 1/4×3/16 | 125x31x4.5 |
| 6×1 1/4×3/16 | 150x31x4.5 |
| Inches | MM |
|---|---|
| Height X Width X Thickness | Height X Width X Thickness |
| 4×1 1/2×3/16 | 100x38x4.5 |
| 5×1 1/2×3/16 | 125x38x4.5 |
| 6×1 1/2×3/16 | 150x38x4.5 |
