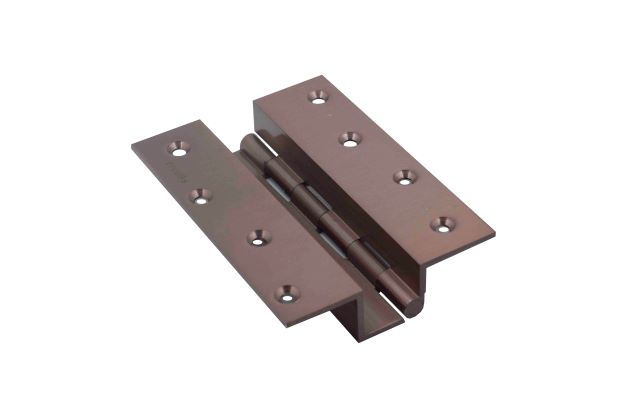

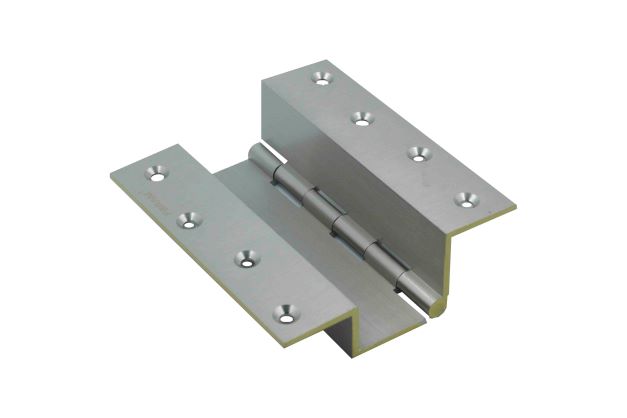

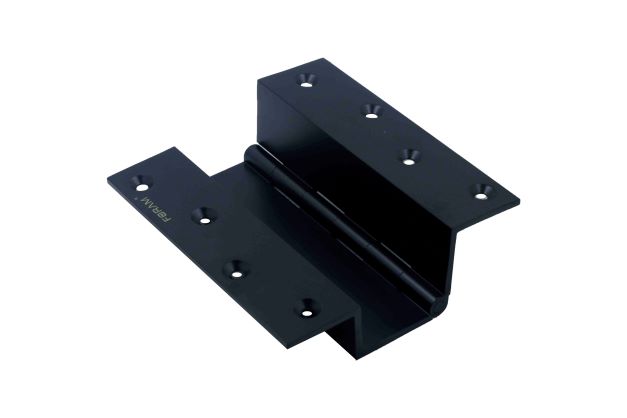

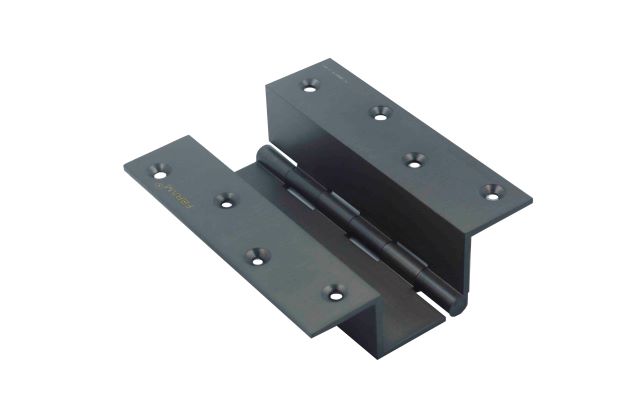

W Hinges
- Made from extruded brass to provide high density
- Very easy to fit for carpenter, as it can fit on side of frame and door instead of edges
- Its size can be decided based on thickness of frame edge and thickness of doors
- Used to cover frame of cabinet by 6mm, 12mm, 19mm and 25mm
- Available width as specified (W) = 9mm to 25mm
- Available depth 5mm, 12mm, 19mm and 25mm
- Thickness – 2.25mm (highest in category)
| INCHES | M.M. | Depth |
|---|---|---|
| Height x Width | Height x Width | Depth |
| 2″ | 50 mm square | Special |
| 3″ | 75 mm | Special |
| 4″ | 100 mm | Special |
| INCHES | M.M. | Depth |
|---|---|---|
| Height x Width | Height x Width | Depth |
| 3×3/8 | 75×9 | 6 mm |
| 3×1/2 | 75×12 | 6 mm |
| 3×3/4 | 75×19 | 6 mm |
| INCHES | M.M. | Depth |
|---|---|---|
| Height x Width | Height x Width | Depth |
| 3×3/8 | 75×9 | 12 mm |
| 3×1/2 | 75×12 | 12 mm |
| 4×1/2 | 100×12 | 12mm |
| 3×3/4 | 75×19 | 12 mm |
| 4×3/4 | 100×19 | 12 mm |
| INCHES | M.M. | Depth |
|---|---|---|
| Height x Width | Height x Width | Depth |
| 3×3/8 | 75×9 | 19 mm |
| 3×1/2 | 75×12 | 19 mm |
| 4×1/2 | 100×12 | 19 mm |
| 3×3/4 | 75×19 | 19 mm |
| 4×3/4 | 100×19 | 19 mm |
