Lock Body

Lock Body

  • Most widely used lock body for doors.

Its available in two variant:

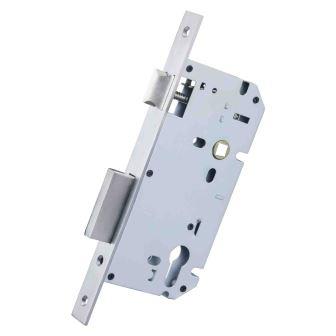

        SINGLE BOLT.

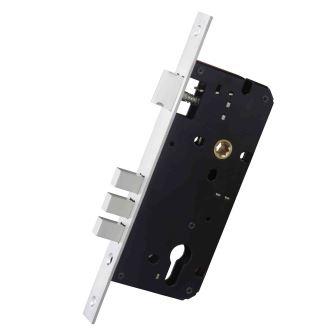

        THREE SQUARE BOLTS.

Material Used:

          Back set – Harden Steel.
          Front plate – Stainless steel 304 grade.
          Bolt – Brass.
          Latch – Brass.
  • It comes with different sizes according to the distance from front plate to center hole.
  • 50×85 – where cylinder center is 50mm from front plate and 85mm – from mortise spindal.
  • 60×85 – where cylinder center is 60mm from front plate and 85mm – from mortise spindal.
  • Reversible latch allows installation for either left or right handed doors.
  • Used for both Metal and Wooded doors.
  • Used in main, Bed room and bathroom doors.
  • Available colors – Steel, Antique, Chrome, Rose Gold and Graphite.
