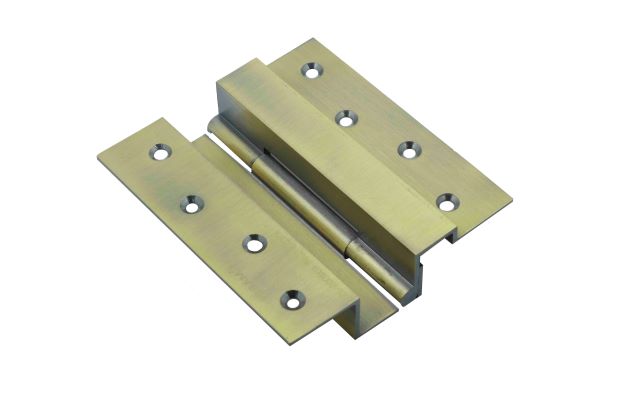

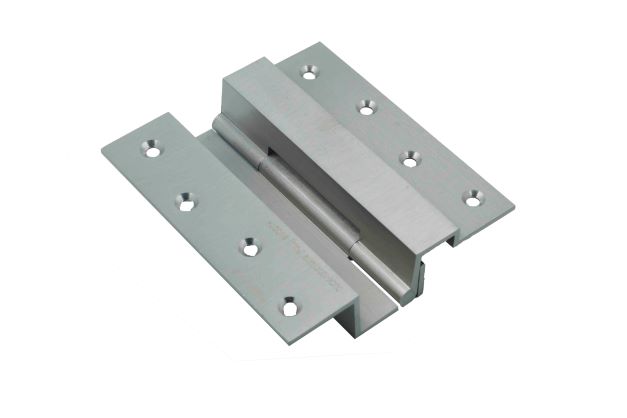

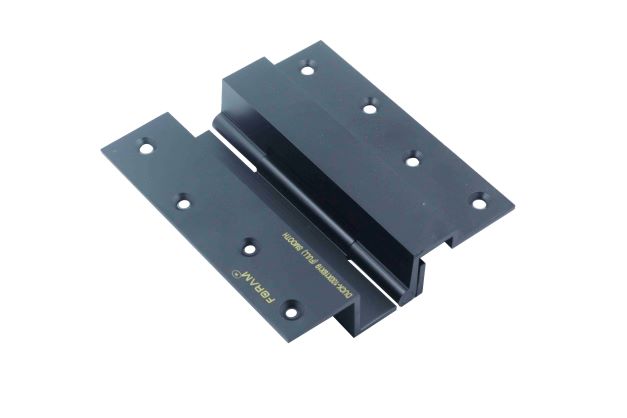

Full Overlay Duct Hinges

Duct Hinges

  • Revolutionary hinges in brass hinges, has multiple advantage both for carpenter and designers
  • This hinges are concealed from inside by laminates so it provides seamless and elegant look of doors
  • It also has mechanism of 90` locking without using door chain or rod latch
  • Mainly seen as substitute for auto hinges in kitchen and wardrobe cabinet
  • It has two variant
    • Full Overlay – it can cover frame either 19mm or 25mm
    • Half Overlay – it can cover frame wither 6mm or 9mm
  • Its size is determined by two factors
    • Thickness of door
    • Size of frame need to cover
  • Available height – 75mm to 100mm
  • Combination available – Door thickness x Frame
  • Its size is determined by Door thickness x Overlay option

Sizes

INCHES M.M. Half Overlay Full Overlay
Height X Door Thickness X Frame Thickness Height X Door Thickness X Frame Thickness Frame Coverage Frame Coverage
2×3/4×3/4 50x19x19 6 MM 19 MM
3×3/4×3/4 79x19x19 6 MM 19 MM
4×3/4×3/4 100x19x19 6 MM 19 MM
INCHES M.M. Half Overlay Full Overlay
Height X Door Thickness X Frame Thickness Height X Door Thickness X Frame Thickness Frame Coverage Frame Coverage
3x1x3/4 75x25x19 6 MM 19 MM
4x1x3/4 100x25x19 6 MM 19 MM
INCHES M.M. Half Overlay Full Overlay
Height X Door Thickness X Frame Thickness Height X Door Thickness X Frame Thickness Frame Coverage Frame Coverage
3×3/4×1 75x19x25 9 MM 25 MM
4×3/4×1 100x19x25 9 MM 25 MM
INCHES M.M. Half Overlay Full Overlay
Height X Door Thickness X Frame Thickness Height X Door Thickness X Frame Thickness Frame Coverage Frame Coverage
3x1x1 75x25x25 9 MM 25 MM
4x1x1 100x25x25 9 MM 25 MM
INCHES M.M. Half Overlay Full Overlay
Height X Door Thickness X Frame Thickness Height X Door Thickness X Frame Thickness Frame Coverage Frame Coverage
3×1 1/4×1 75x35x25 9 MM 25 MM
4×1 1/4×1 100x35x25 9 MM 25 MM
