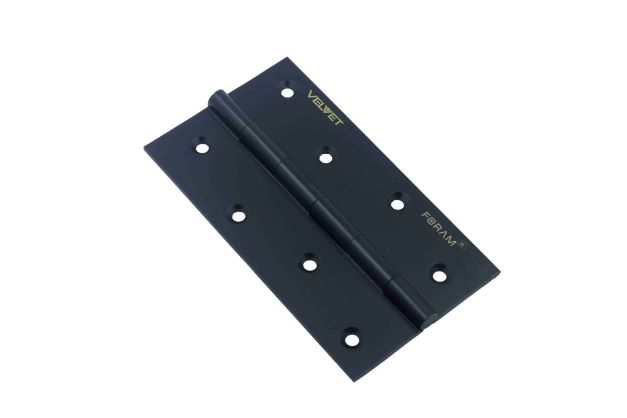

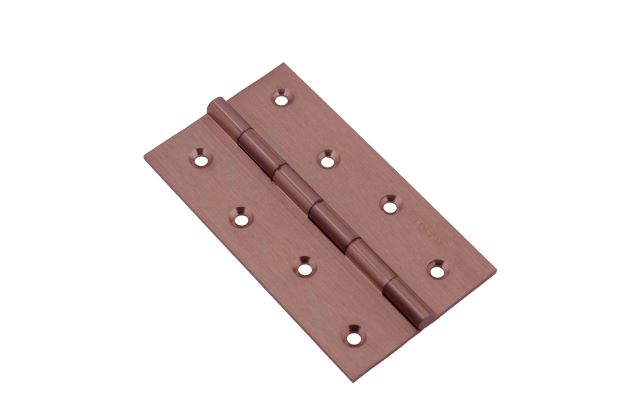

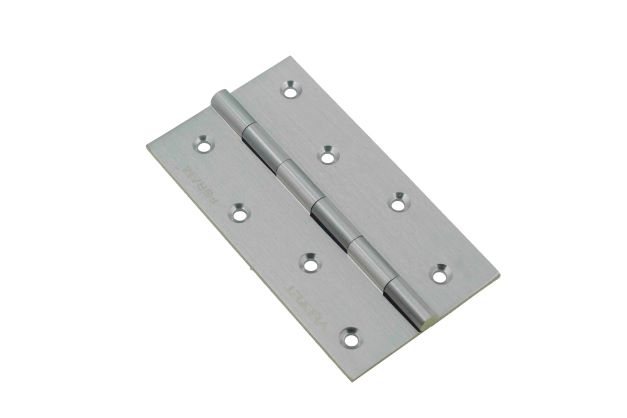

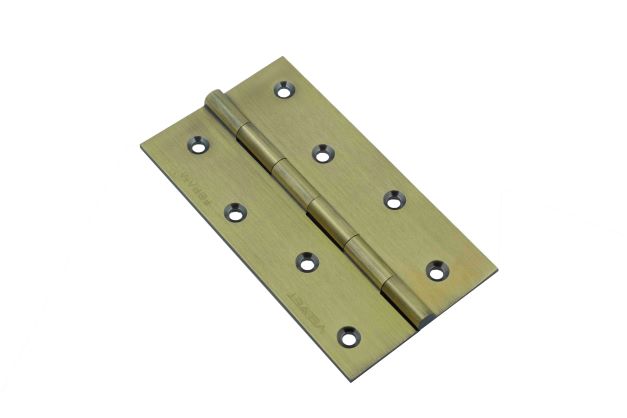

Butt Hinges
- These are cabinet family hinges made from high quality brass
- Its main usage is for wardrobe and cabinets
- This hinges does not leave any gap between door and frame and even when doors are open
- It has two variants Butt Hinges & Cut Butt Hinges
- Butt Hinges has same wings on both side used for same thickness of door and frame
- Cut Hinges has different size of both wings used for different thickness of door and frame
- Used for cabinet doors having thickness between 12mm to 35mm
Sizes Available in Butt Hinges
| Inches | MM |
|---|---|
| Height X Width | Height X Width |
| 3×3/8 | 75×9 |
| 4×3/8 | 100×9 |
| 3×1/2 | 75×12 |
| 4×1/2 | 100×12 |
| 3×5/8 | 75×16 |
| 4 x 5/8 | 100×16 |
| 3×3/4 | 75×19 |
| 4×3/4 | 100×19 |
| 5×3/4 | 125×19 |
| 3×7/8 | 75×22 |
| 4×7/8 | 100×22 |
| 3×1 | 75×25 |
| 4×1 | 100×25 |
Sizes Available in Cut Butt Hinges
| Inches | MM |
|---|---|
| Height X Width1x Width 2 | Height X Width1x Width 2 |
| 3×3/8×5/8 | 75x9x16 |
| 4×3/8×5/8 | 100x9x16 |
| 3×3/8×3/4 | 75x9x19 |
| 4×3/8×3/4 | 100x9x19 |
| 3×3/8×1 | 75x9x25 |
| 4×3/8×1 | 100x9x25 |
| 3×1/2×3/4 | 75x12x19 |
| 4×1/2×3/4 | 100x12x19 |
| 3×1/2×1 | 75x12x25 |
| 4×1/2×1 | 100x12x25 |
| 3×3/8×1 1/2 | 75x9x38 |
| 4×3/8×1 1/2 | 100x9x38 |
| 3×1/2×1 1/2 | 75x12x38 |
| 4x 1/2x 1 1/2 | 100x12x38 |
| 3×3/4×1 | 75x19x25 |
| 4×3/4×1 | 100x19x25 |
| 5×3/4×1 | 125x19x25 |
| 3×3/4×1 1/2 | 75x19x38 |
| 4×3/4×1 1/2 | 100x19x38 |
| 5×3/4×1 1/2 | 125x19x38 |
| 3x1x1 1/2 | 75x25x38 |
| 4x1x1 1/2 | 100x25x38 |
| 5x1x1 1/2 | 125x25x38 |
